Precise milled parts up to 3500 x 800 mm from the CNC milled parts manufacturer in Austria
CNC milled parts
As a contract manufacturer for milled parts, the dynamics of competition demand maximum flexibility from us. Continuously optimised production processes from the quotation to the finished milled part enable us as a milled part manufacturer to keep delivery times short and to react flexibly and quickly to customisation requests.
Milled parts in contract manufacturing
Using state-of-the-art CNC machining centers, we efficiently machine the workpieces and tolerances you specify into the desired shape. Our range of services includes vertical CNC milling up to 3500 mm and horizontal CNC milling with a machining length of up to 1000 mm—from initial prototypes to series production. Complex milling and turning operations in a single setup. Maximum precision and dimensional accuracy. Reproducible quality even with challenging materials. We offer contract milling services using state-of-the-art machinery. This ensures consistently high quality and cost-effective production of CNC-milled parts.
CNC milled parts Material
Thanks to our modern machinery and highly trained employees, we are able to process a wide variety of materials.
Milled parts made of steel
- Free-cutting steel
- Tool steel
- C-steel
- Stainless steel
- Powder steel
- Castings
- Casting blanks
Milled parts made of aluminium
- AlCuMgPb
- AlMgSi0,5
- AlmgSi1,0
- AlMg3
- Billet aluminium
- Cast aluminium
Milled parts made of brass and copper are also part of our portfolio.
Our milling processes
Mould milling is particularly important in tool and mould making and has become established due to its high flexibility and diversity in parts production. Other milling processes are also available
Mould milling
Controlled feed movement for any flat or spatial surfaces.
Profile milling
The shape of the tool is transferred to the workpiece (longitudinal and round profiles).
Face milling
Straight feed movements for flat surfaces.
Circular milling
Circular feed movements for cylindrical moulds (external and internal cylindrical milling).
Screw milling
Helical feed movements for screw moulds (threads and cylindrical screws).
Hob milling
Feed with simultaneous rolling motion with profiled tool for gears and splined shafts.
Precise milled parts for a wide range of industries and customised applications
On-demand and on-time component production for a wide range of industries. As an experienced partner in the production of milled parts, we serve the machine, plant and tool construction sectors, among others. We work for the paper industry and the shipping industry or for manufacturers of plastic injection moulding machines. Our CNC machines ensure maximum precision and surface quality as well as the lowest tolerances in terms of flatness, shape deviation and roughness.
Milled Part Dimensions
Production of large milled parts up to 3500 x 800 x 750 mm
| Make | Type | Path X | Path Y | Path Z | Performance | Special equipment |
|---|---|---|---|---|---|---|

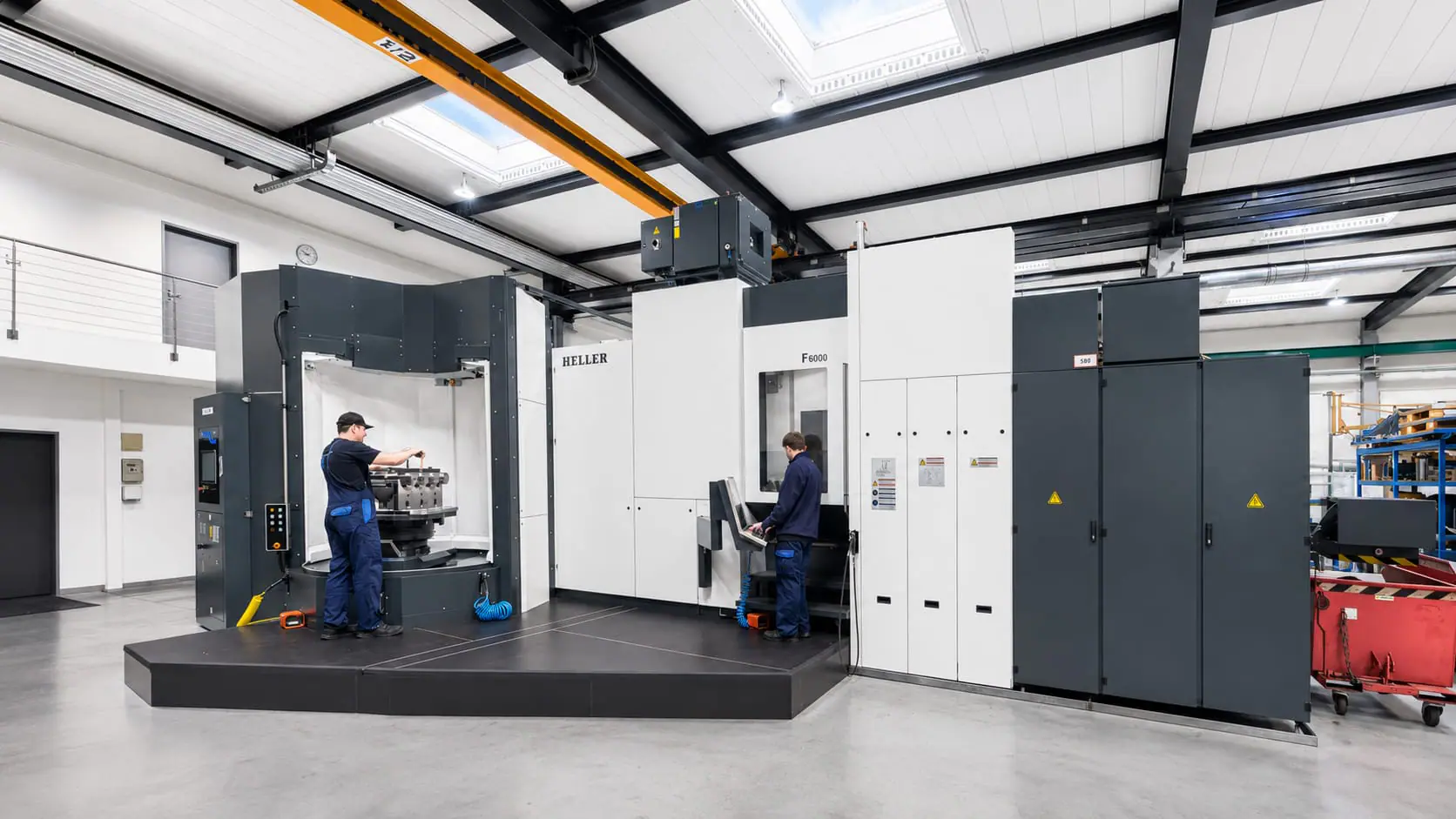

| Heller MCP-H 250 | CNC | 800 | 800 | 710 | 43 kW | Tool changer with 52 tool places, 2 pallets 500 x 630 |
| Heller F6000 Mill-Turn | CNC | 1000 | 1000 | 1400 | 52 kW | 5-axis milling with swivel head,turning function, tool changer with 150tool positions, automation with 12pallet carousels, gear cutting |
| Hedelius BC 80 X2500 | CNC | 2500 | 800 | 750 | 50 kW | Tool changer with 30 tool positions, NC dividing head with counter bearing, angle head |
| Hedelius BC 80 X3500 | CNC | 3500 | 800 | 750 | 50 kW | Tool changer with 30 tool positions, NC dividing head with counter bearing, angle head |
Downloads
Want to read up a bit? Need details? No problem, simply download the information you need.
Shorten your production time, improve your productivity and increase your company’s profits.
We manufacture milled parts on a contract basis for global customers who are leaders in their industries, as well as for start-ups and hidden champions. We look forward to offering you a customised solution.
